YJ-06
Multifunctional Dry Ice Cleaning Machine
● Precision Cleaning Capability – With dry ice particle diameters between 0.2–1.5 mm, it can penetrate narrow holes and gaps for precise and efficient cleaning results.
● Low-cost and Efficient Operation – Adjustable dry ice consumption within 11–25 levels can be controlled to less than 0.2 kg per minute, greatly reducing unit cleaning costs and making it especially suitable for continuous production line operations.
● Strong Flexibility and Adaptability – Operating pressure range of 3–10 Bar allows flexible adjustment for different materials and shapes, meeting diverse industrial cleaning requirements.
● Innovative Anti-Clogging System – Equipped with an advanced hopper stirring device to effectively prevent dry ice from clumping, ensuring continuous and stable operation while avoiding clogging issues.
● Durable and Reliable Design – Driven by a frequency conversion motor, it operates stably and is highly durable, ensuring long-term, efficient dry ice output.
Machine introduction video
YJ-06 Multifunctional Dry Ice Cleaning Machine
The YJ-06 Multi-Purpose Dry Ice Blasting Machine is a versatile industrial cleaning solution that leverages the core advantages of dry ice blasting: zero wear, no residue, and environmental friendliness.
The YJ-06 excels in mold maintenance, precision parts handling, electronics cleaning, and industrial equipment maintenance. Suitable for injection molds, silicone molds, rubber molds, polyurethane molds, aluminum die-cast molds, cast iron molds, foam molds, and magnesium-aluminum alloy molds, it delivers precise, non-destructive cleaning, extending mold life.
The YJ-06 effectively removes burrs and flash from parts, even deep holes and threaded holes, making it an ideal choice for deburring CNC machined and die-cast parts.
The YJ-06 also provides in-process cleaning and maintenance for industrial equipment such as automated production lines, painting and plating lines, and wave soldering and reflow systems, reducing downtime and improving efficiency.
In summary, the YJ-06 combines non-destructive, deep cleaning, environmental friendliness, and high-efficiency cleaning, making it an ideal solution for a wide range of industries.
Machine Application Scenarios
Display of some application scenarios
Semiconductor Parts Cleaning
It requires no mechanical friction or chemical solvents and causes no abrasion or corrosion to precision components such as wafers, reaction chambers, electrostatic chucks, and spray nozzles.

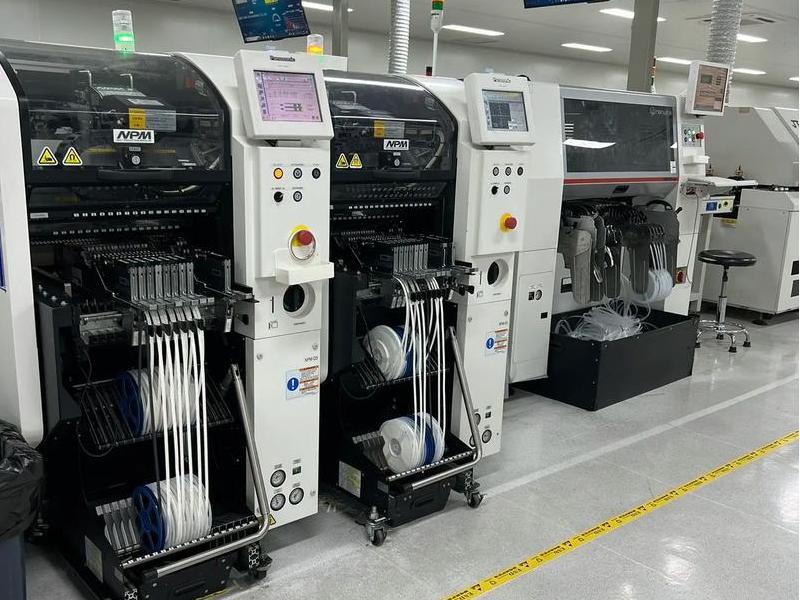

SMT Placement Machine Maintenance
It can efficiently remove solder paste residues, flux, dust, and fine particles, ensuring placement accuracy and soldering quality.
Data Server Dust Removal
It can quickly remove accumulated dust, fine particles, and contaminants on thermal surfaces inside servers, restoring cooling efficiency and preventing overheating.
Mold Maintenance
Suitable for precision cleaning of injection molding, rubber, aluminum die casting, etc. It removes residues without damaging the mold surface and extends the mold life.
Metal Parts Deburring
Used to eliminate burrs and attachments from metal parts, ensuring accuracy and reducing subsequent manual processing.
Plastic Parts Deburring
Efficiently removes burrs and flash from injection-molded or machined plastic parts, improving product appearance and quality.
Cleaning video display
Use dry ice to clean mold oil and rust
Dry ice blasting for mold rust removal
Dry ice blasting technology for wave soldering equipment maintenance
Dust removal of distribution cabinets
Dry Ice Blasting for Radiator Cleaning
Dry ice blasting to remove burrs from plastic parts
| Machine Specifications | |
| Product Parameter | |
| Product model | YJ-06 |
| Product size | 60*46*88 cm |
| Net weight (N.W) | 50 kg |
| Operating voltage | AC110-240V (50-60Hz) |
| Motor rated power | 330W |
| Moving mode | Wheel |
| Control mode | Pedal/Manual/Remote control/IO |
| Equipment Performance | |
| Ice output adjustment range | 0 - 0.65 kg/Min |
| Ice output pressure adjustment range | 0 - 0.8 MPa (0-8 Bar) |
| Blasted dry ice particle size | 0.2 - 1.5 mm |
| Effective spray distance | 50 - 200 mm |
| Dry ice hopper capacity | 10 kg |
| Ice mixing method | Knife spiral cutting + Ice roller with ice |
| Consumable Parameter | |
| Dry ice | 3 mm dry ice pellets |
| Dry ice consumption | 0.09 - 0.2 kg/Min(Settings 11–25, typical range) |
| Working pressure | ≥ 0.8 MPa (8 Bar) |
| Air flow (FAD) | ≥ 0.8 m³/Min |
| Air compressor configuration | ≥ 7.5 KW (10hp) |
| Packing List | |
| Packing | Wooden case packing |
| Packing size | 65*54*103 cm |
| Gross Weight (G.W.) | 69 kg |
| Dry ice cleaning machine | 1 Unit |
| Aerodynamic nozzle | 2 Piece |
| Professional low-temperature dry ice delivery hose | 1 Piece |
| Handheld dry ice spray gun | 1 Piece |
| Explosion-proof air hose | 1 Piece |
| Goggles, gloves, earmuffs,ice shovel | 1 Piece each |
