YJ-02
Mini Dry Ice Cleaning Machine
● Compact and Portable Design – With dimensions of 58×33×71 cm and a weight of only 33 kg, the machine is lightweight, flexible, and easy to carry, making it convenient to operate even in confined spaces.
● Adjustable Powerful Blasting – The blasting pressure ranges from 2.5 to 10 Bar, with a maximum of 10 Bar, providing strong impact force and excellent cleaning performance.
● Efficient, Energy-Saving, and Eco-Friendly – With a dry ice consumption of only 0.3–0.6 kg per minute, it is cost-effective while also being environmentally friendly.
● Innovative Anti-Clogging System – Equipped with an advanced ice hopper stirring device that intelligently prevents dry ice from clumping, ensuring continuous operation and effectively avoiding blockages.
● Durable and Reliable – Powered by a variable frequency motor, it is built to last and ensures long-term stable and efficient dry ice output.
Machine introduction video
YJ-02 Mini dry ice cleaning machine
The YJ-02 mini dry ice cleaning machine is a compact and flexible solution for industrial cleaning and maintenance, designed for a wide range of applications.
In the automotive sector, it effectively removes carbon deposits from engines, oil stains from engine bays, and stubborn dirt from chassis surfaces - all without damaging the substrate or paintwork. It can also perform deep interior cleaning, reaching tight gaps around dashboards, seats, and other hard-to-access areas for thorough maintenance.
In the industrial manufacturing field, the YJ-02 serves as a highly efficient tool for machinery maintenance, significantly reducing equipment downtime and improving production efficiency. The high-speed dry ice pellets penetrate complex structures and narrow gaps to remove oil, carbon buildup, resin, oxidation, and other tough contaminants. Its non-abrasive cleaning process prevents corrosion and mechanical wear, effectively extending the service life of industrial equipment.
Throughout the entire cleaning process, no chemicals are required, making the YJ-02 a truly efficient, non-destructive, and environmentally friendly cleaning solution.
Machine Application Scenarios
Display of some application scenarios
Engine Bay Dust Removal
Safely cleans dust and oil stains from electrical and mechanical components in the engine bay without the need for chemical cleaners.
Car Chassis Cleaning
Effectively removes dirt, oil, and corrosive substances from the chassis, enhancing vehicle maintenance.

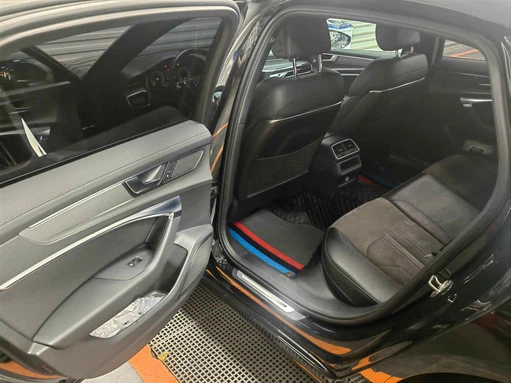

Interior Cleaning
Provides deep cleaning for seats, carpets, and plastic components, removing stubborn stains and odors to keep the car interior clean and hygienic.
Engine Carbon Cleaning
Quickly removes carbon deposits from engine intake ducts and combustion chambers, improving engine performance and fuel efficiency.
Parts Refurbishment
Removes oxidation layers, paint, oil, and deposits from part surfaces, restoring their original smoothness and functionality.
Mechanical Equipment Maintenance
Significantly reduces equipment downtime; the non-destructive cleaning method prevents corrosion and mechanical wear, effectively extending the service life of machinery.
Cleaning video display
Using dry ice to clean carbon deposits from car engines
Use dry ice to clean oil and dust from the surface of the car engine
Use dry ice to clean oil and dust from car bodies
Using dry ice to clean oil and dust from car wheels
Use dry ice cleaning machine to clean the rust on the piston of the car engine
Dry ice blasting for machine maintenance
| Machine Specifications | |
| Product Parameter | |
| Product model | YJ-02 |
| Product size | 58*33*71 cm |
| Net weight (N.W.) | 33 kg |
| Operating voltage | AC110-240V (50-60HZ) |
| Motor rated power | 350 W |
| Moving mode | Wheel |
| Control mode | Pedal/Manual/Remote control/IO |
| Equipment Performance | |
| Ice output adjustment range | 0-3 kg/Min |
| Ice output pressure adjustment range | 0-0.8 MPa (0-8 Bar) |
| Blasted dry ice particle size | 2-3 mm |
| Effective spray distance | 50-800 mm |
| Dry ice hopper capacity | 8 kg |
| Consumable Parameter | |
| Dry ice | 3 mm dry ice pellets |
| Dry ice consumption | 0.3-0.6 kg/Min(Settings 11–25, typical range) |
| Working pressure | ≥ 0.8 MPa (8 Bar) |
| Air flow (FAD) | ≥ 0.8 m³/Min |
| Air compressor configuration | ≥ 7.5 KW (10hp) |
| Packing List | |
| Packing | Wooden case packing |
| Packing size | 70*40*86 cm |
| Gross Weight (G.W.) | 55 kg |
| Dry ice cleaning machine | 1 Unit |
| Aerodynamic nozzle | 4 Piece |
| Professional low-temperature dry ice delivery hose | 1 Piece |
| Handheld dry ice spray gun | 1 Piece |
| Explosion-proof air hose | 1 Piece |
| Goggles; Gloves; Earmuffs; Ice shovel | 1 Piece each |
