YJ-04
Energy-saving dry ice cleaning machine
● The energy-saving dry ice cleaning machine is highly praised in multiple fields for its efficiency, environmental friendliness, and non-destructiveness.
● Its compact design in full stainless steel is both aesthetically pleasing and durable, ensuring stable and reliable long-term use.
● Using a variable frequency motor, it provides strong power, guaranteeing long operation times and stable output of dry ice particles.
● The size of the dry ice particles can be adjusted as needed (0.05-0.1mm or 0.2-0.6mm) to meet refined cleaning requirements.
● Technological advancements are driving the expansion of dry ice cleaning technology, bringing efficiency and convenience to more industries.
| Machine Specifications | |
| Product Parameter | |
| Product model | YJ-04 |

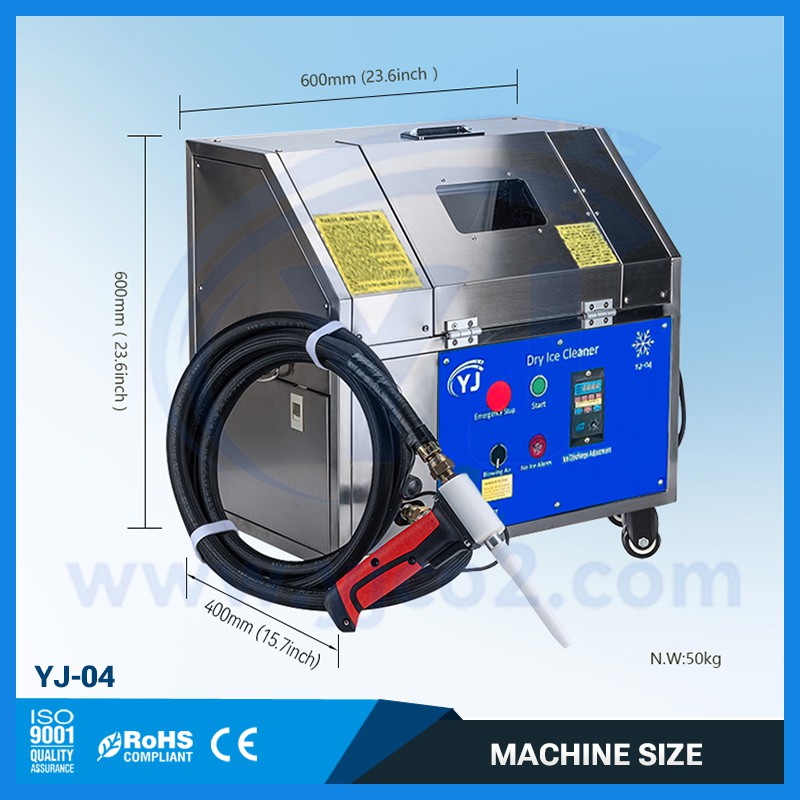

| Product size | 60*40*60 cm |
| Net weight (N.W) | 50 kg |
| Operating voltage | AC110-240V ( 50-60 Hz) |
| Motor rated power | 300 W |
| Moving mode: | Table/Wheel |
| Control mode: | Pedal/Manual/Remote control/IO |
| Equipment Performance | |
| Ice output adjustment range | 0-0.65 kg/Min |
| Ice output pressure adjustment range | 0-0.8 MPa (0-8 Bar) |
| Blasted dry ice particle size | 0.05 - 0.1 mm & 0.2 - 0.6 mm (Customizable) |
| Effective spray distance | 50-200 mm |
| Dry ice hopper capacity | 5 kg |
| Ice adding cycle | 30-150 Min/Time |
| Ice mixing method | Knife spiral cutting + Ice roller with ice |
| Consumable Parameter | |
| Dry ice | 140*140*250 mm Block dry ice(Max. Size) |
| Dry ice consumption | 0.04-0.14 kg/Min(Settings 11–25, typical range) |
| Working pressure | ≥ 0.8 MPa (2.5-10Bar) |
| Air flow (FAD) | ≥ 0.8 m³/Min |
| Air compressor configuration | ≥ 7.5 KW (10hp) |
| Packing List | |
| Packing | Wooden case packing |
| Packing size | 71*64*45 cm |
| Gross Weight (G.W.) | 70 kg |
|
Dry ice cleaning machine |
1 Unit |
| Aerodynamic nozzle | 2 Piece |
| Professional low-temperature dry ice delivery hose | 1 Piece |
| Trigger pedal switch | 1 Piece |
| Explosion-proof air hose | 1 Piece |
| Goggles; Gloves; Earmuffs | 1 Piece each |
| Main Uses | |
| Industrial Manufacturing Sector | Mold cleaning Equipment maintenance Electronic component cleaning |
| Food Processing Industry | Production line cleaning Refrigeration equipment cleaning |
| Aerospace and Automotive Manufacturing | Engine cleaning Aircraft exterior cleaning |
| Energy and Chemical Industry | Boiler cleaning Chemical equipment cleaning |
| Cultural Relics Protection and Building Cleaning | Cultural relic restoration Building exterior cleaning |
