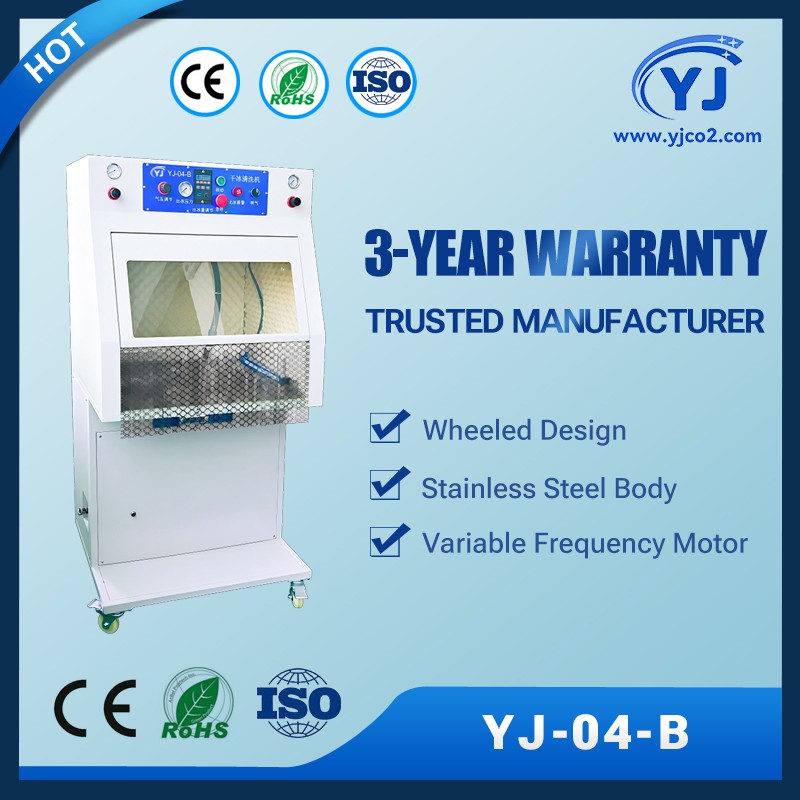

YJ-04-B
Anti-static dry ice cleaning machine
●Integrating dry ice cleaning, sound insulation, noise reduction, and dust removal functions, it achieves comprehensive cleaning and environmentally friendly operations.
●Specifically designed for circuit board cleaning and burr removal, it is widely applicable in scenarios such as PCBA and PCB flux cleaning in electronics factories, as well as burr removal in plastic and hardware manufacturing.
●Utilizing patented technology, it effectively controls static electricity levels below 75V during the cleaning process, ensuring operational safety.
●Seamlessly connecting to factory assembly lines, it enables inline cleaning and immediate use in the production model, significantly enhancing production efficiency.
| Machine Specifications | |
| Product Parameter | |
| Product model | YJ-04-B |

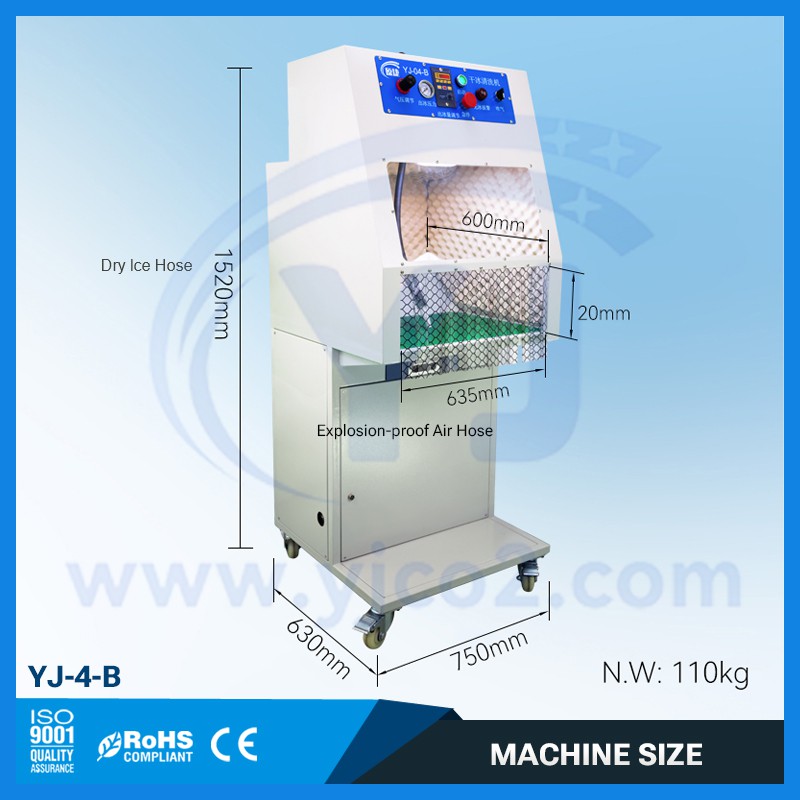

| Product size | 75 * 63 * 152 cm (Upgraded version) |
| Working window space size | 63.5*20*60 cm |
| Net weight (N.W.) | 110 kg |
| Operating voltage | AC110-240V (50-60Hz) |
| Motor rated power | 350 W |
| Moving mode | Wheel |
| Control mode | Manual |
| Equipment Performance | |
| Ice output adjustment range | 0 - 0.65 kg/Min |
| Ice output pressure adjustment range | 0.25-1.0 MPa (2.5-10Bar) |
| Blasted dry ice particle size | 0.05 - 0.1 mm |
| Effective spray distance | 50 - 200 mm |
| Dry ice hopper capacity | 5 kg |
| Ice mixing method | Knife spiral cutting + Ice roller with ice |
| Anti-static performance | The static value during cleaning is below 75V |
| Consumable Parameter | |
| Dry ice | 140*140*250 mm Block dry ice(Max. Size) |
| Dry ice consumption | 0.04-0.14 kg/Min(Settings 11–25, typical range) |
| Working pressure | ≥ 0.8 MPa ( 8 Bar) |
| Air flow (FAD) | ≥ 0.8 m³/Min |
| Air compressor configuration | ≥ 7.5 KW (10hp) |
| Packing List | |
| Packing | Wooden case packing |
| Packing size | 83*71*168 cm |
| Gross Weight (G.W.) | 143 kg |
| Dry ice cleaning machine | 1 Unit |
| Aerodynamic nozzle | 2 Piece |
| Ice discharge box | 1 Piece |
| Trigger pedal switch | 1 Piece |
| Explosion-proof air hose | 1 Piece |
| Goggles, gloves, earmuffs | 1 Piece each |
| Main Uses | |
| Integrated circuit industry | Clean PCBA flux Clean PCBA residue |
| Manufacturing plants | Clean plastic burrs Clean gear burrs Clean hardware burrs Deburring for Various Precision Components |
